MBC50GR

Overview

The Atosa MBC50GR is a horizontal bottle cooler for commercial beverage service. Its 11.7 cu. ft. interior provides refrigerated storage, while the stainless steel exterior and interior suit placement behind a bar, in a restaurant beverage area or at another commercial serving station. The cooler has a 50-inch model designation and an exterior footprint of 49 3/8 inches wide by 26 3/4 inches deep. Overall height is 38 1/2 inches.

Access is through easy-glide stainless steel sliding lids with handles. Standard lid locks help secure the contents, and the supplied wire dividers help separate beverage selections. A bottle opener and cap catcher are also standard. Pre-installed casters allow the unit to be moved for placement or cleaning.

Key Features

• Stainless steel cabinet: Stainless steel exterior and interior.
• Electronic temperature control: The controller displays cabinet temperature and allows the set temperature to be adjusted.
• Self-contained refrigeration: Side-mounted condensing unit with a heavy-duty Embraco compressor and R290 refrigerant.
• Service access: Slide-out compressor assembly.
• Convenient access: Easy-glide stainless steel lids with handles and standard locks.
• Bar service features: Bottle opener with cap catcher and three wire dividers.
• Mobility: Pre-installed 2-inch casters.

Specifications

• Brand: Atosa
• Model: MBC50GR
• Equipment type: Horizontal bottle cooler
• Capacity: 11.7 cu. ft.
• Exterior dimensions: 49 3/8" W x 26 3/4" D x 38 1/2" H
• Net weight: 176 lb
• Gross weight: 236 lb
• Electrical rating: 115 V, 60 Hz, single phase
• Current: 2.3 A
• Motor rating: 1/7 HP
• Plug: NEMA 5-15P; the spec sheet also lists NEMA 15A/125V.
• Refrigerant: R290
• Compressor: Heavy-duty Embraco, side-mounted refrigeration system
• Temperature: Atosa’s spec sheet lists a recommended setting of 35°F–38°F. OnlyAtosa lists a maintained range of 33°F–40°F. The supplied manual gives the electronic controller’s setting band as 36°F–46°F.
• Interior organization: Three wire dividers

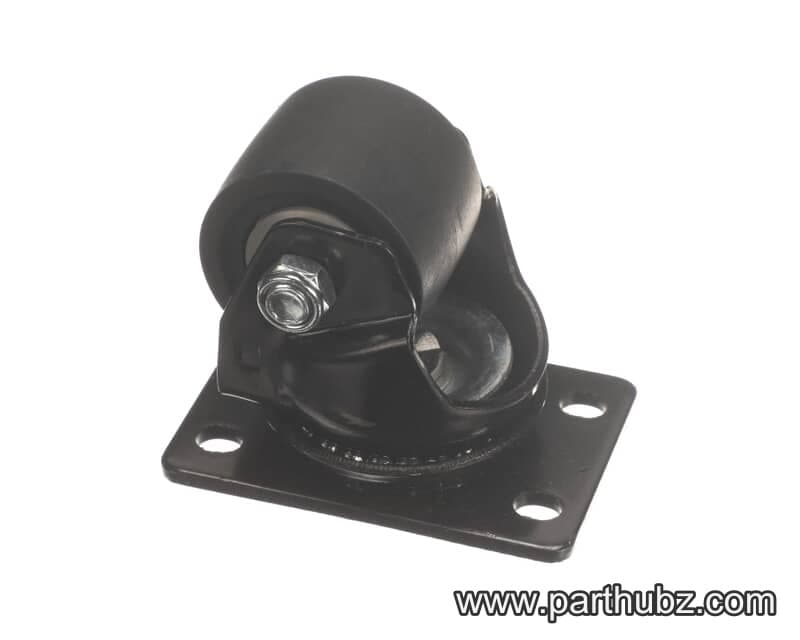

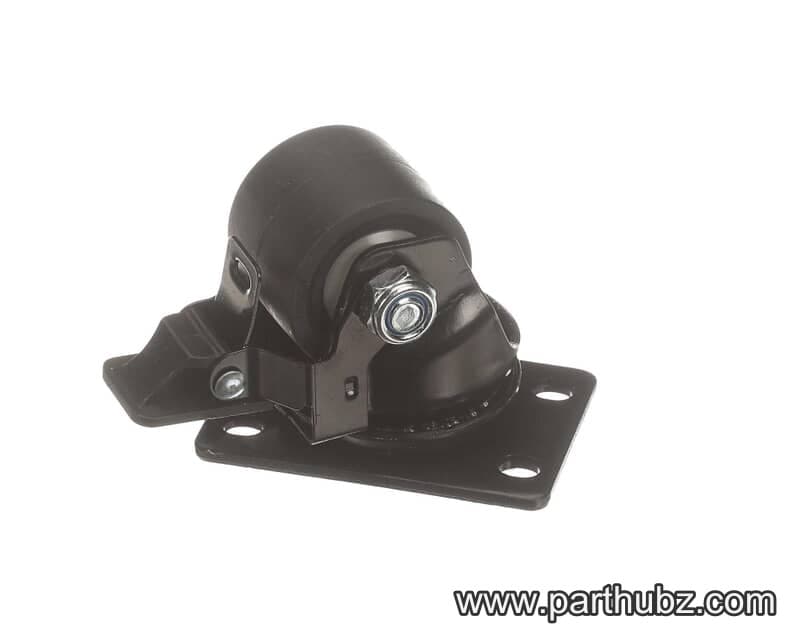

• Casters: 2-inch, pre-installed
• Included features: Stainless steel sliding lids and handles, lid locks, bottle opener and cap catcher
• Noise information: The supplied manual states that equipment with an integral hermetic condensing unit does not exceed 70 dB.
• Warranty information: The supplied spec sheet lists a 2-year parts-and-labour warranty and a 5-year compressor-parts warranty. Refer to current manufacturer warranty terms for coverage details.

Installation & Requirements

Placement and ventilation

The supplied manual calls for a flat surface and level placement, and says the cabinet should be positioned so it can be used and maintained. The manual refers to adjusting levelling legs; product literature for this model lists pre-installed casters. Allow free air circulation around the condensing unit. The manual’s positioning diagram specifies at least 50 cm of space and warns that restricted circulation can affect cabinet operation.

Place the cooler away from direct heat sources such as radiators and direct lighting, and protect it from direct sunlight and draughts. The manual says not to install the equipment in an explosive environment, in the open air or where it is exposed to rain. The stated optimum operating ambient temperature is 50°F–90°F.

Electrical connection

If the cabinet has been positioned horizontally during handling, the manual instructs waiting two hours before switching it on.

Operation

Starting and setting the controller

Switch on the unit. The electronic panel illuminates and displays the cabinet’s current air temperature; the compressor indicator also illuminates. After a power interruption, the compressor normally restarts after a short delay. During normal operation, the display shows the air temperature inside the cabinet.

To view the set temperature, press and hold the SET button for one second. To change it, press SET and use the up or down control to raise or lower the value, then press SET to confirm. The manual gives the controller operating band as 36°F–46°F. Separately, Atosa’s spec sheet recommends setting the refrigerator between 35°F and 38°F for food preservation, while OnlyAtosa lists a maintained range of 33°F–40°F. These figures describe different published guidance; consult the unit’s label and controller when selecting a setting.

Loading and defrosting

The manual says to load merchandise only after the unit has reached the desired operating temperature shown on the display. Do not put uncovered hot food or liquids inside. Package or protect products where possible, avoid obstructing internal air circulation, and avoid frequent or prolonged opening of doors or drawers. The manual also advises waiting a few moments before reopening a drawer or door after closing it. When stocking, open and fill one drawer at a time; the MBC50GR uses sliding lids.

The electronic controller automatically defrosts four times in 24 hours. The manual describes starting a manual defrost by holding the DEF or dripping-snow button for more than five seconds. A defrost cycle starts immediately, and the following cycle starts after six hours; the DEF indicator illuminates during defrosting.

Cleaning & Maintenance

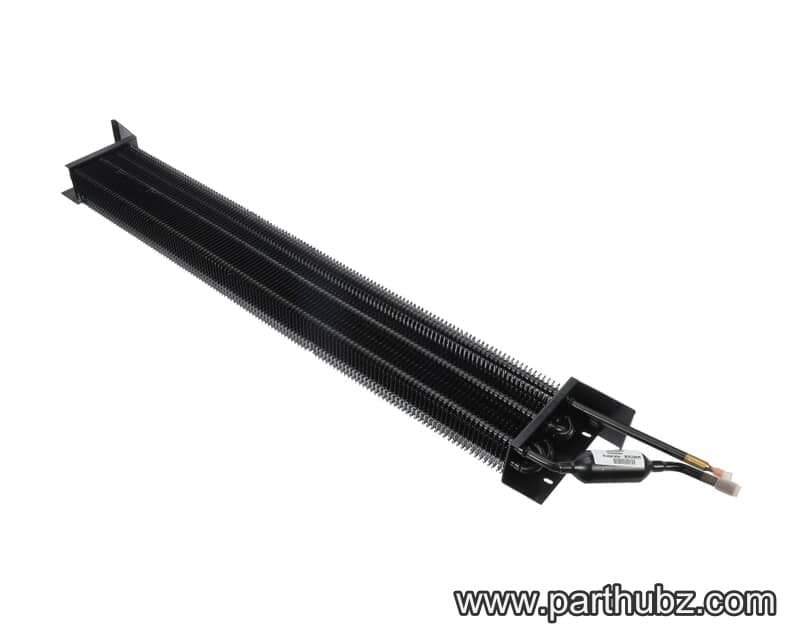

Before first use, clean the cabinet walls and interior parts with an antibacterial detergent. For plastic parts, use a damp cloth and dry with a soft, clean cloth. The manual advises using little or no water and avoiding harsh or abrasive solvents and detergents. Wear protective gloves when cleaning near parts that may cut, including the evaporator and condenser.

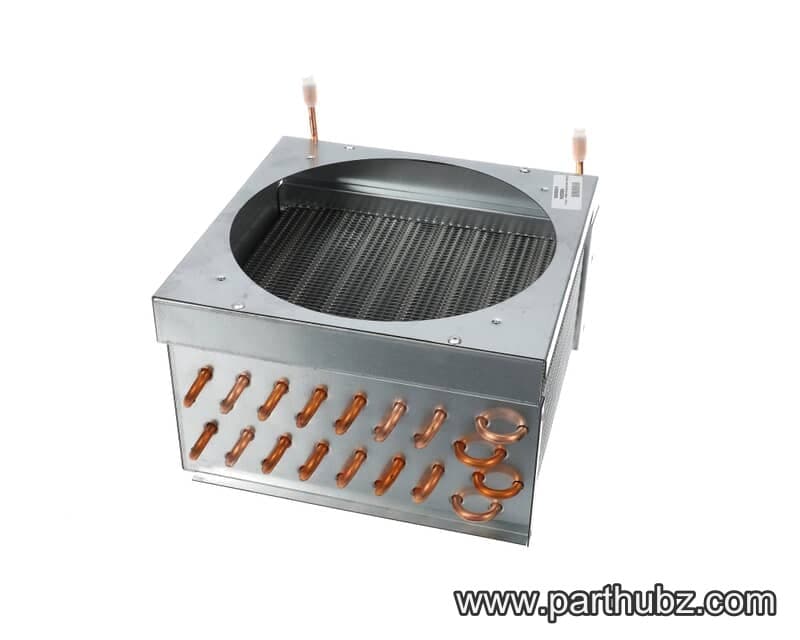

Atosa’s spec sheet instructs operators to clean the condenser frequently to provide fresh airflow; it does not specify a cleaning interval. Keep air circulation around the condensing unit unobstructed. The slide-out compressor assembly provides access for maintenance. Defrost water is dispersed automatically on models with an integral condensing unit, according to the manual.

Troubleshooting

The manual identifies an E0 flashing alarm code for the electronic control panel. If an alarm code appears, note it, switch the electronic control panel off, then switch it on again after a few seconds. If the code appears again, contact technical assistance and report the code. The manual’s contents also list troubleshooting topics for a cabinet that does not operate, does not reach the required temperature, leaks water or is unacceptably noisy; the supplied text does not provide the corresponding remedies, so no specific corrective steps are listed here.

Applications

The manual identifies beer refrigeration, preparation and sale as possible uses. In practice, the MBC50GR’s horizontal bottle storage, dividers, sliding lids and built-in opener and cap catcher suit commercial bar service, restaurant beverage stations and other settings that need organized chilled bottled beverages close to the point of service.
