MBF8006

Overview

The Atosa MBF8006 is a top-mount, solid three-door reach-in refrigerator for commercial food storage. Its 64.90 cu. ft. interior provides space for ingredients, prepared foods and stocked containers in restaurant kitchens, institutional foodservice operations and other commercial settings. The three solid swing doors give staff access to separate sections of the cabinet, while the stainless steel interior and exterior are described as easy to clean and maintain.

The product listing states that the refrigerator maintains temperatures between 33 and 38°F. The supplied general top-mount reach-in manual lists a temperature range of +33 to +45°F for model MBF8006GR. As these published ranges differ, verify the applicable specification for the exact unit before relying on a particular operating range.

Key Features

• Top-mounted refrigeration: The compressor is mounted above the cabinet. The product information describes this arrangement as useful in dry storage areas where floors may collect dust or spilled ingredients.
• Air-cooled, self-contained system: The listing describes a self-contained refrigeration system intended to provide balanced cooling, including in demanding commercial environments.
• Digital temperature control: A Dixell digital temperature controller manages the cabinet temperature. The manufacturer search result also identifies a digital temperature controller and heavy-duty compressor.
• Three swing doors: The solid doors close automatically when left open at less than 90 degrees. When opened beyond 90 degrees, they stay open to make loading easier. Recessed handles reduce protrusions and are described as easy to clean.
• Flexible storage: Nine pre-installed epoxy-coated wire shelves resist rust and corrosion, according to the product listing. Each shelf has a stated load capacity of up to 155 lb.
• Stainless steel construction: The interior and exterior are stainless steel, providing a cleanable finish for commercial kitchen and storeroom use.
• Mobility and access control: Six pre-installed 4-inch swivel casters assist with moving the unit; the front casters have brakes. The refrigerator also has stainless steel door locks.
• Refrigeration efficiency claims: The seller describes the refrigeration system as energy efficient and says the Embraco compressor can reduce noise and vibration and save up to 40% more energy compared with other types. Treat this as the seller’s stated comparison, not a guaranteed saving for every installation.

Specifications

• Brand: Atosa
• Model: MBF8006; the product and manual references also use MBF8006GR.
• Equipment type: Reach-in refrigerator
• Configuration: Top mount, three solid swing doors
• Capacity: 64.90 cu. ft.; the manual table lists 64.88 cu. ft.
• Temperature: Product listing: 33–38°F. Manual table for MBF8006GR: +33 to +45°F.
• Construction: Stainless steel interior and exterior
• Shelves: Nine epoxy-coated wire shelves, pre-installed; listed capacity up to 155 lb per shelf
• Doors: Self-closing below 90 degrees and stay-open beyond 90 degrees; recessed handles; stainless steel locks
• Casters: Six 4-inch swivel casters, with brakes on the front set

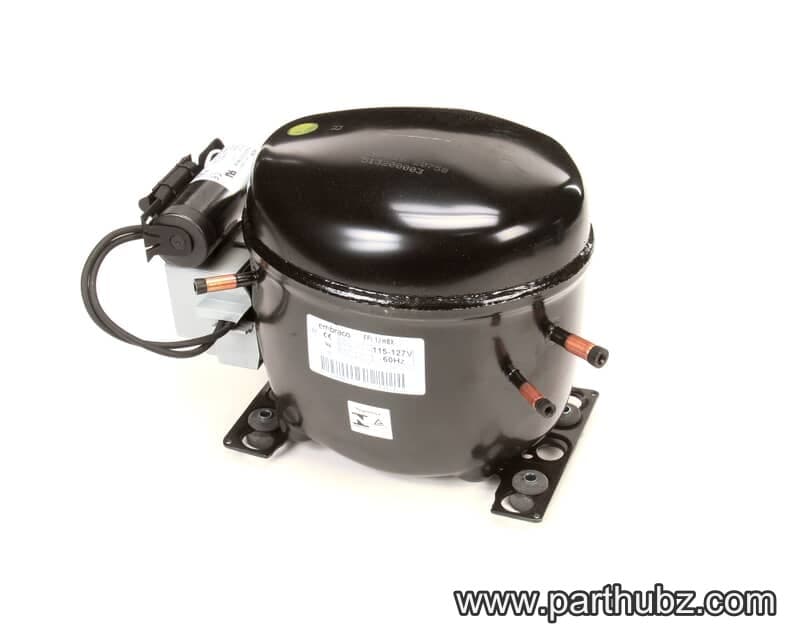

• Compressor and controls: Top-mounted compressor; product description identifies a heavy-duty Embraco compressor and Dixell digital temperature controller.
• Refrigeration: Self-contained, air-cooled system
• Electrical supply: Product listing: 115 V, 60 Hz, single phase. The manual table lists 115 V and 60 Hz.
• Current: Published values differ: Nella lists 7.6 A, while the manual table for MBF8006GR lists 4.2 A.
• Compressor horsepower: Published values differ: Nella lists 1/4 HP and Elite Restaurant Equipment lists 1/2 HP.
• Input power: Manual table for MBF8006GR: 470 W.
• Energy use: Elite Restaurant Equipment lists power consumption of 3.4 kW/24 h.
• Refrigerant: Manual table for MBF8006GR: R290, 5.3 oz.
• Dimensions: The manual table for MBF8006GR lists 77.8 × 33.3 × 81.3 in. Nella lists 77.80 × 31.70 × 81.30 in. Confirm the unit’s exact dimensions before planning its placement.
• Listings and marks stated in the product information: ETL Certified, ETL Sanitation Listed and Energy Star Partner.
• Plug: Product information identifies a NEMA 5-15P plug.

Some specifications differ between the available product and manual references, including temperature range, dimensions, amperage and horsepower. Confirm the data plate and the documentation supplied with the specific unit when matching electrical service or planning a fit.

Installation & Requirements

The supplied general instruction manual for Atosa top-mount reach-ins says to place the refrigerator in the coolest, best-ventilated part of the room and not near heat sources or direct sunlight. The manual states that connection to the electrical system and installation of the thermomagnetic circuit breaker are to be completed by professionally qualified persons.

The manual calls for the supply voltage to match the unit rating, shown for this model family as 115 V / 60 Hz / 1 phase, and says the incoming voltage should remain within ±10% of the rated voltage. It specifies a thermomagnetic circuit breaker between the mains power point and the refrigerator power-supply cable; the breaker is not supplied. It also says the electrical system must be suitable for the unit’s rated electrical output and comply with current requirements. The product listing identifies a NEMA 5-15P plug. Because published current and input details vary, check the exact unit documentation and nameplate when confirming the connection.

Operation

The refrigerator is intended for preserving fresh, perishable foodstuffs, according to the manual. Use the digital temperature controller to monitor and manage the cabinet setting; the supplied product description identifies the control as a Dixell digital temperature controller. The product listing gives a 33–38°F operating range, while the manual’s model table gives +33 to +45°F for MBF8006GR. Refer to the documentation for the specific unit when setting or assessing its temperature.

The doors are intended to close on their own when opened less than 90 degrees. If a door is opened beyond 90 degrees, it remains open, which can assist while loading. The refrigerator has door locks for limiting access to stored food and drinks as needed. The general manual also cautions users not to modify the microcomputer parameters privately, as the manufacturer states that changes could damage the compressor unit or other functions.

Cleaning & Maintenance

The supplied manual recommends regular cleaning of the refrigerator unit each month. Before cleaning, disconnect the refrigerator power-supply cable from the mains. For the refrigerator surface, the manual instructs users to clean with mild detergent and dry with a soft cloth. The product information describes the stainless steel interior and exterior as easy to clean and maintain.

The manual warns against improper or inadequate maintenance and use of non-original spare parts. It states that component parts should be replaced with like components and that servicing is to be performed by factory-authorized service personnel. It also warns users not to damage the refrigerant circuit. Follow the instructions for the particular unit and use qualified service personnel for work beyond the cleaning steps stated in the manual.

Troubleshooting

The supplied manual excerpt includes a control-unit section and an alarm-signalling section, but it does not provide enough detail here to identify individual symbols, alarm codes or symptom-specific repair steps. Check the unit’s own manual and display information for the meaning of a particular alarm. The manual cautions against privately changing microcomputer parameters because this may damage the compressor unit or other functions.

For an electrical issue, the manual directs that electrical connection work be carried out by professionally qualified persons. It also identifies power-supply defects, improper installation, misuse, inadequate maintenance and unauthorized modification as possible causes of failure or damage. Do not attempt repairs based on an unidentified display symbol; consult qualified service personnel and the documentation for the exact model.

Applications

The MBF8006 is suited to commercial kitchens and storerooms that need a large, upright refrigerated holding cabinet. Its three-door layout and adjustable shelf positions can support organized storage of ingredients, prepared foods and frequently accessed products. The solid doors are appropriate where staff value enclosed storage rather than product visibility, while the stay-open feature can help during restocking and the caster brakes provide a way to secure the unit after moving it.
