MCF8701GR

Overview

The Atosa MCF8701GR is a one-section glass door reach-in freezer that puts frozen product on display. The cabinet measures 27.00 inches wide by 31.70 inches deep by 83.10 inches tall and holds 19.1 cubic feet behind a single self-closing hinged glass door. Atosa catalogs it under its Bottom Mount Freezers and S/S Glass Door Merchandiser Freezers categories, and Canadian dealers list it as a 27-inch merchandising freezer.

Inside and out, the cabinet is stainless steel, and LED interior lights keep packaged goods visible through the glass. The refrigeration system is bottom-mount and self-contained, pairing a heavy-duty Embraco compressor rated at 0.5 HP with R290 refrigerant. Atosa describes its reach-in freezers as delivering reliable performance, even cooling, and easy storage, and retailer listings for this model describe the bottom-mount self-contained system as space-saving, highly efficient, and consistent in its cooling performance.

Electrical service is conventional: 115 volts, 60 Hz, single phase, drawing 6.3 amps and 725 watts, terminating in a NEMA 5-15P plug. The unit is ETL certified through Intertek's North American safety certification program and NSF certified for sanitation compliance, and a Canadian listing identifies it as Energy Star certified for Canada. PartHubz supplies parts for the MCF8701GR and provides its parts manual; the parts desk can be reached at 833-700-8006 or [email protected].

Key Features

• Single glass door merchandiser freezer — one self-closing hinged glass door keeps inventory in full view for customers and staff.
• Stainless steel exterior and interior — stainless construction throughout the cabinet for commercial service.
• LED interior lights — illuminate the cabinet interior so displayed product reads clearly through the door.

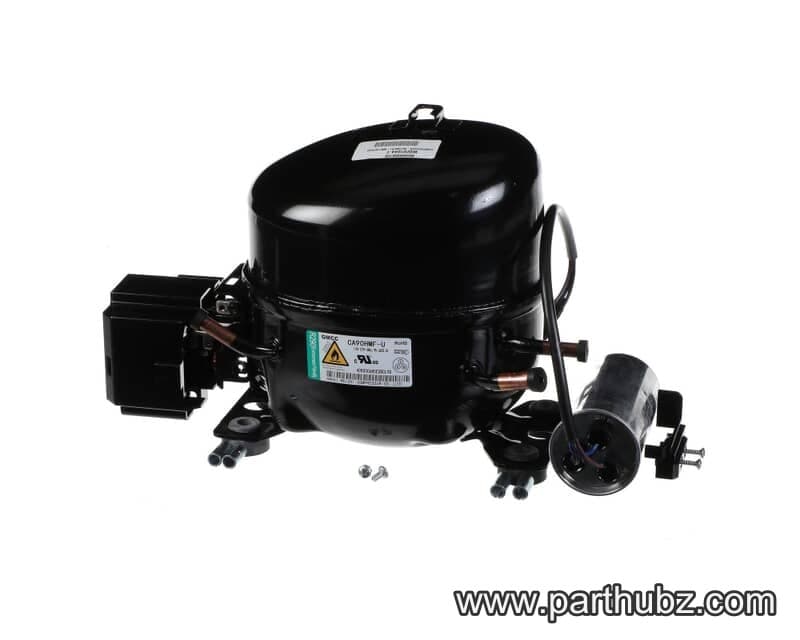

• Heavy-duty Embraco compressor — a 0.5 HP compressor from Embraco drives the refrigeration system.
• R290 refrigerant — the refrigerant referenced in Atosa's description of this unit.
• Bottom-mount, self-contained refrigeration — the refrigeration system is housed in the cabinet base; listings describe it as space-saving and highly efficient with consistent cooling performance.
• 19.1 cu ft capacity on four shelves — four shelves inside a 19.1 cubic foot cabinet.
• Standard electrical connection — 115V/60Hz/1-phase at 6.3 amps and 725 watts on a NEMA 5-15P plug.
• Certified for commercial foodservice — ETL certified to North American safety standards and NSF certified for sanitation; identified as Energy Star certified in a Canadian listing.

Specifications

• Model: MCF8701GR
• Product type: One-section glass door reach-in freezer (merchandiser freezer)
• Doors: 1 — self-closing hinged glass door
• Shelves: 4
• Capacity: 19.1 cu. ft.
• Width: 27.00 inches (one spec sheet lists 26.97 inches)
• Depth: 31.70 inches (one spec sheet lists 31.5 inches)
• Height: 83.10 inches (one spec sheet lists 84.6 inches)
• Net weight: 309 lb
• Voltage / Hertz / Phase: 115 V / 60 Hz / 1 Phase
• Amperage: 6.3 A
• Wattage: 725 W
• Horsepower: 0.5 HP
• Compressor: Heavy-duty Embraco
• Refrigerant: R290
• Refrigeration system: Bottom-mount, self-contained
• Lighting: LED interior lights
• Exterior / interior: Stainless steel
• Electrical connection: NEMA 5-15P
• Country of origin: China

Applications

The glass door is what separates the MCF8701GR from a solid-door reach-in: the inventory stays visible at all times, which matters anywhere frozen product is sold or picked at speed. Because the LED-lit interior shows through the door, staff can check stock levels without opening the cabinet and customers can browse without assistance. Typical uses include:

• Convenience and corner stores merchandising frozen meals, novelties, and bagged ice
• Cafés, bubble tea shops, and dessert bars holding frozen toppings, pastries, and novelties
• Bakeries and pastry shops staging frozen doughs and ready-to-bake items
• Restaurants and ghost kitchens adding back-of-house frozen storage with at-a-glance inventory checks
• Grocery and specialty food retail where customers select from a glass-door freezer case
• Caterers and food producers holding packaged frozen product before dispatch

At 27 inches wide, the unit fits footprint-tight kitchens and retail floors where a full 54-inch two-door cabinet will not. Operations that do need more volume can step up within the same Atosa glass-door family: the MCF8703ES is a two-section glass door freezer and the MCF8707GR is a two-section glass door refrigerator, both 54.40 inches wide with 44.8 cu ft of capacity.

For service and repair, PartHubz supplies parts for the MCF8701GR and publishes its parts manual. If you need help identifying a component, contact the parts desk at 833-700-8006 or [email protected].
