AH/1E-40

Overview

The Groen AH/1E-40 is a stationary, gas-fired steam jacketed kettle for commercial kitchens that prepare or dispense food in large batches. Its kettle capacity is 40 gallons (150 litres), while the steam jacket holds 7 gallons (26.5 litres). A gas-heated, self-contained steam source heats the jacket, which transfers heat to the kettle contents. The manual states a cooking temperature range of 150°F to approximately 270°F (65°C to 135°C), suitable for warming, simmering, boiling and braising.

The kettle has a stainless steel body and a 316 stainless steel liner. The body is insulated, and the unit stands on three adjustable legs for levelling. Its stationary configuration does not tilt; contents are drawn off through the valve at the front of the kettle.

Key Features

• 40-gallon capacity: Provides a large batch vessel for institutional kitchens, commissaries and catering operations.
• 2/3 steam jacket: The gas-heated, self-contained steam source heats the kettle through its jacket.
• Thermostatic temperature control: Front-mounted controls include a regulating thermostat. The heating system cycles as needed to maintain the set temperature.
• Insulated construction: The stainless steel body is insulated to retain heat and stay cool to the touch, as described in the product listing.
• Counterbalanced cover: The 40-gallon model’s cover uses a counterbalancing spring actuator to hold it in the fully open or closed position.
• Draw-off and strainer: A 2-inch tangent draw-off valve is paired with a removable perforated strainer with 1/4-inch holes.
• Levelling support: Three adjustable legs help level the stationary kettle.
• Jacket safeguards: The manual identifies a pressure limit switch, safety valve and low-water cutoff as automatic controls.

Specifications

• Manufacturer: Groen
• Model: AH/1E-40
• Equipment type: Stationary gas steam jacketed kettle
• Kettle capacity: 40 gallons (150 litres)
• Jacket capacity: 7 gallons (26.5 litres)
• Jacket design: 2/3 jacket
• Kettle inside diameter: 26 inches (660 mm)
• Kettle depth: 22 inches (559 mm)
• Temperature range: 150°F to 270°F in the product listing; the manual describes 150°F (65°C) to approximately 270°F (135°C)
• Maximum working pressure: 30 PSI (206.7 kPa; 2.06 bar)
• Gas firing rate: The manual lists 100,000 BTU/hour for natural gas and 85,000 BTU/hour for propane. A separate product listing states 100,000 BTU input; verify the rating for the selected fuel and build.
• Gas supply pressure: The equipment listing specifies 3.5 inches water column manifold pressure.
• Electrical listing: 115 V, 60 Hz, single phase.
• Liner: 316 stainless steel
• Draw-off: 2-inch tangent draw-off; the manual describes a 316 stainless steel compression disc valve.
• Strainer: Removable, perforated strainer with 1/4-inch holes
• Cover: Counterbalanced spring actuator for the 40-gallon model
• Support: Three adjustable legs; product listings also describe bullet feet.
• Approximate weight: 620 lb (approximately 281 kg), according to the equipment listing.
• Published overall dimensions in product listings: 43.25 inches wide × 50.25 inches deep × 41 inches high.
• Dimensions in the manual’s AH/1E-40 table: 38.25 inches overall width, 45 inches front-to-back and 42 inches rim height. The manual table and product listings report different overall dimensions; confirm the applicable drawing before planning the installation.
• Listings and certifications stated in product sources: NSF, UL, CSA, CSA Star and CSA Flame.
• Factory jacket fill: The manual states the jacket is filled with water containing rust inhibitor.

Installation & Requirements

The service and parts manual says the kettle must be installed by a competent person in accordance with the installation and servicing instructions and the applicable regulations. It specifically states that installation in Canada must conform to CAN/CGA B149 installation codes for gas-burning appliances and equipment and/or local codes.

Provide a gas service capable of supplying the kettle at its full firing rate without excessive pressure drop. The manual says to check that the gas meter can supply the kettle in addition to other gas equipment connected to it. The product listing gives a manifold gas pressure of 3.5 inches water column. After connecting the gas supply, the manual requires gas-line joints to be checked for leaks using a suitable leak detector or thick soap solution; it expressly says not to use a flame.

The manual calls for adequate room ventilation and air supply. It describes discharge under an open canopy connected with a ventilating system and says not to connect the kettle’s flue directly to a flue, mechanical extraction system or ducting leading outside. It specifies a minimum clearance of 6 inches at the sides from combustible and non-combustible construction, and 6 inches between the draft diverter and the wall. It also says to leave room for cleaning, maintenance and service, and not to obstruct combustion-chamber air intake spaces or airflow around the kettle.

The manual instructs installers to connect the unit’s protective earth ground at the provided terminal. The equipment listing identifies a 115 V, 60 Hz, single-phase electrical supply. Check the exact unit’s electrical and gas requirements against its nameplate and applicable site plans.

Operation

The operator sets the cooking temperature using the front-mounted thermostat and controls electrical power with the ON/OFF switch. The gas-heated steam source warms the jacket; the thermostat regulates heating in response to the selected temperature. Product information gives a temperature range of 150°F to 270°F. The manual explains that the jacket pressure limit switch turns the burner off when pressure reaches 27 PSI and calls for burner operation again when pressure drops to 22 PSI. A separate safety valve releases steam if jacket pressure exceeds 30 PSI.

Operators can monitor the unit using the water-level sight glass, pressure/vacuum gauge, heating indicator light, power-on indicator light and low-water indicator light described in the manual. The sight glass indicates jacket water level; the gauge indicates steam pressure and whether excess air has entered the jacket. The low-water cutoff stops the burner if jacket water is too low for safe operation, and the low-water indicator light signals that jacket water needs replenishing.

For draining, use the 2-inch draw-off valve. The removable perforated strainer helps keep pieces of food from entering the draw-off during cooking. The counterbalanced cover on the 40-gallon kettle is intended to remain in its open or closed position while the operator loads or unloads product.

Cleaning & Maintenance

The manual says to contact an authorized representative when repairs are required and to keep a maintenance and service log recording the date, work performed and person who completed it. It identifies the following routine checks:

• Daily: Check the pressure/vacuum gauge. When cold, the manual states that it should show a vacuum of -20 to -30 inches of mercury, or -0.7 to -1.0 bar.
• Daily: Check jacket water level. It should be between the marks on the gauge glass. If the level is low, follow the manual’s jacket-filling and water-treatment instructions.
• At least twice each month: Carefully test the pressure relief valve using the manual’s procedure. With the kettle operating at 15 PSI, pull the test lever and let it snap closed. If discharge is little or mostly air and the pressure gauge returns to 0 PSI, the manual directs the operator to let pressure build to 5 PSI and repeat the procedure. It suggests using a screwdriver or other implement to pull the ring to help avoid contact with steam.
• Service checks: The manual says electrical wiring should be kept securely connected and in good condition, and the inside of the support housing should be kept clean.

The manual warns that heating an empty kettle may cause steam to discharge from the safety valve. It also says to keep the area around the kettle clear of combustible materials. For replacement parts, it warns that using parts other than those supplied by authorized distributors can cause injury or equipment damage and void warranties.

Troubleshooting

The manual separates operator checks from work for an authorized service representative. For a burner that will not light, the operator-level checks shown include confirming that the main gas supply valve is open and checking gas supply to the building. The manual assigns thermostat checks and ignition-system diagnosis to an authorized service representative.

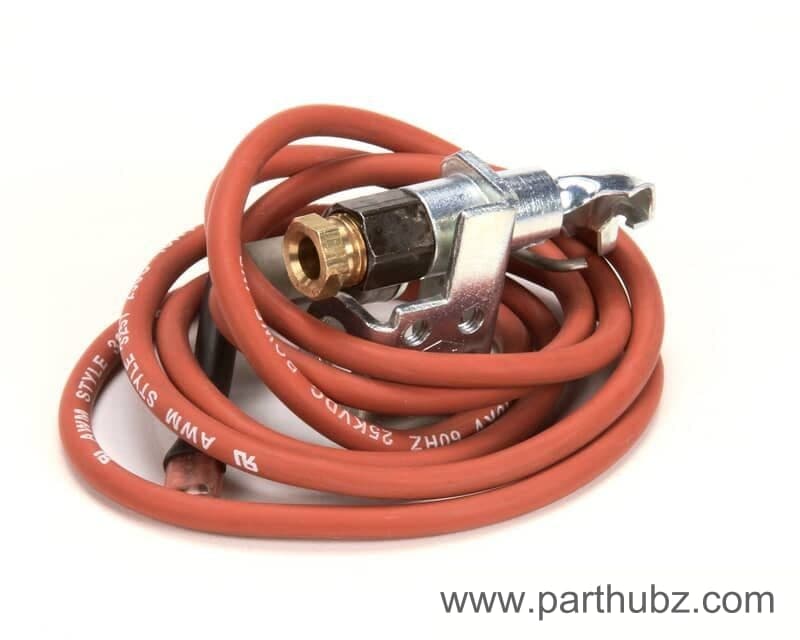

If the system does not produce a spark, the service checks listed include confirming 24 V at the transformer’s secondary terminals when the unit is powered, inspecting the high-tension cable and pilot burner ceramic insulator, and checking the pilot spark gap. If the pilot lights but the main burner does not come on, the manual lists checks of ignition-control-module voltage, gas pressure, electrical connections at the main valve and the valve’s magnetic operator.

For a safety valve that opens, the manual lists air in the jacket, thermostat setting or operation, and a defective safety valve as possible checks. It says a valve that opens below 29 PSI should be replaced. For further troubleshooting or repairs, follow the service manual and use an appropriately qualified service representative.

Applications

The 40-gallon capacity and stated warming, simmering, boiling and braising temperature range make the AH/1E-40 suitable for large-batch soups, sauces and stocks, as well as institutional foodservice, commissary and catering kitchen production. The stationary design and draw-off valve suit kitchens that want to cook in the kettle and dispense product through the front outlet.
