ML-134499

Overview

Hobart ML-134499 is the model number for the ES20 mixer — a 20-litre planetary mixer in Hobart's Ecomax line of 10 and 20 litre planetary mixers. Hobart's own spare parts list, Form 43208 (October 2009), covers the ES20 under two model numbers: ML-134499, the 115 V build, and ML-141009, the 240 V build of the same machine. The smaller ES10 models, ML-134376 and ML-134377, appear in the same manual family as related models.

Form 43208 breaks the ES20 into ten illustrated sections: control panel (PL-59222), electrical components (PL-59224), attachment hub, base and pedestal, bowl support, transmission case and motor (PL-59232), transmission (PL-59234), bowl guard (PL-59236), agitators and accessories, and wiring harnesses. PartHubz provides this manual for ML-134499 owners and supplies the replacement parts it lists, with support at 833-700-8006 or [email protected].

Key Features

• 20-litre planetary mixing: The ES20 designation marks this as the 20-litre (20 qt) member of the Ecomax planetary mixer family.
• 115 V electrical package: ML-134499 runs the Delta controller 00-937124-00001 (115 V) with a 2-pole relay 00-087714-042-1 rated 120 VAC — the voltage-specific components the manual assigns to this model.
• Belt-driven power train: Motor assembly 00-937161, mounted on plate 00-937140 with isolators 00-917410, drives through V-ribbed belt 00-917502-00002, driver pulley 00-937128 and driven pulley 00-917370.

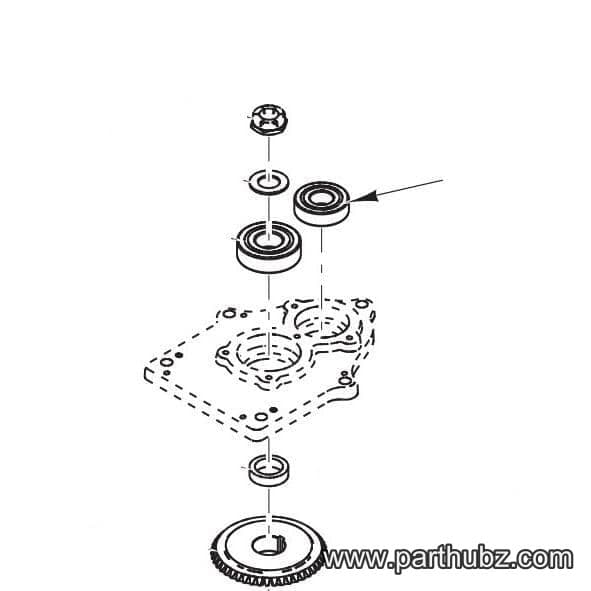

• Geared transmission: The transmission pairs a 46-tooth bevel gear (00-124733-00002) with a 63-tooth internal gear (00-917086-00002) and an 18-tooth gear (00-874777), running on ball bearings BB-005-34, BB-005-01 and BB-005-23, with input shaft 00-917116 and center shaft 00-917081.
• Bowl guard with reed switch: The bowl guard section lists reed switch 00-916902-00003 and its holder 00-917184.
• Attachment hub: A dedicated attachment hub section, with the 1-1/8 inch thumb screw 00-108197-00001 securing hub accessories.

Specifications

• Model: Hobart ML-134499 (ES20 mixer)
• Capacity: 20 litres (20 qt)
• Electrical: 115 V — Delta controller 00-937124-00001; 2-pole relay 00-087714-042-1 (120 VAC)
• Related 240 V model: ML-141009 — controller 00-937124-00002 (240 V), relay 00-087714-042-3 (240 VAC)
• Manual: Spare Parts List Form 43208 (October 2009)
• Family: Ecomax ES10 (ML-134376, ML-134377) and ES20 (ML-134499, ML-141009) planetary mixers
• Motor: Motor assembly 00-937161; mounting plate 00-937140; isolators 00-917410; cap screws M8 x 1.25 x 30 mm (SC-130-77)
• Drive belt: V-ribbed belt 00-917502-00002; driver pulley 00-937128 (key 6 mm x 6 mm x 25 mm); driven pulley 00-917370 (key 5 mm x 5 mm x 40 mm)
• Transmission gears: Bevel gear 46T 00-124733-00002; internal gear 63T 00-917086-00002; gear 18T 00-874777
• Shafts: Input shaft 00-917116; center shaft 00-917081; center shaft assembly 00-917179 (includes items 7, 9, 10 and 39)
• Bearings: Ball bearings BB-005-34, BB-005-01, BB-005-23; planetary spacer 00-874793; lock nut 5/8-18 SST (NS-032-37)
• Planetary oil seal: 00-023482, 1 inch ID
• Bowl guard: Reed switch 00-916902-00003; holder 00-917184
• Attachment hub: Thumb screw 00-108197-00001, 1-1/8 inch
• Transmission case: Cover 00-917083-00002; top bearing retainer 00-937158

Installation & Requirements

Form 43208 is a parts document, so it does not publish clearance or ventilation figures for the ES20. What it does establish is the electrical identity of ML-134499: this model number carries the 115 V controller and the 120 VAC 2-pole relay. The 240 V controller (00-937124-00002) and 240 VAC relay (00-087714-042-3) listed alongside them belong to ML-141009, so replacement electrical components must be ordered to match the voltage of the machine in front of you.

The manual also states plainly: if service is needed on this equipment, contact your local Hobart Service Office.

Operation

The ES20 is a planetary mixer: the agitator spins on its own axis while travelling around the bowl, the motion that gives the design its name. On ML-134499, the Delta controller (00-937124-00001) on the control panel and the 2-pole 120 VAC relay (00-087714-042-1) handle the machine's control side.

Cleaning & Maintenance

The transmission case is closed by cover 00-917083-00002, held by 5/16 x 7/8 hex socket cap screws (SC-062-81), with retainer 00-937158 at the top bearing. For anything beyond parts replacement, the manual's direction is straightforward: contact your local Hobart Service Office.

Applications

A 20-litre planetary mixer fits the daily production rhythm of bakeries, pizzerias, restaurants, hotel kitchens, institutional cafeterias and test kitchens — anywhere batches of dough, batter, icing or whipped products are mixed in 20-litre volumes. The attachment hub extends the machine beyond the agitators and accessories listed in the manual, letting the same motor drive hub-mounted accessories.

Parts stocking is simpler than it looks: several ES20 components — the BB-005-34 ball bearing, the 00-023482 oil seal, the 46T bevel gear and the hub thumb screw — are shared with other Hobart mixers such as the A200, HL120, HL200, HL200C, HL300, HL400, ES300 and ML-141009, so the same part numbers serve multiple machines in a mixed fleet.
