AHS-40

Overview

The Groen AHS-40 is a low-height, floor-mounted steam jacketed kettle for batch cooking and heated product preparation. It has a 40-gallon capacity and is stationary rather than tilting. A gas-heated, self-contained steam source boils water in a closed jacket covering the lower two-thirds of the kettle. Steam under pressure transfers heat to the kettle body, while electronic spark ignition lights the burners.

Product is removed through the tangent draw-off valve. The manual identifies a thermostat for setting operating temperature, a toggle switch for power, and indicator lights for power, heat, and low jacket water. The AHS-40 also has a pressure/vacuum gauge and a jacket water sight glass for routine operator checks.

Key Features

• Large batch capacity: The 40-gallon kettle supports batch preparation in commercial foodservice kitchens.
• Steam-jacket heating: A closed jacket around the lower two-thirds of the kettle uses steam produced by the unit’s gas-heated, self-contained steam source.
• Electronic ignition: Electronic spark ignition attempts to light the pilot when the toggle switch is turned on.
• Stationary kettle: This model does not tilt. Product is drained using the tangent draw-off valve.
• Operating indicators: Indicator lights identify power-on, heat, and low-water conditions.
• Jacket monitoring: A sight glass allows the operator to check jacket water level, and a pressure/vacuum gauge is used to check jacket vacuum.

Specifications

• Manufacturer: Groen
• Model: AHS-40
• Product type: Low Height Steam Jacketed Kettle
• Capacity: 40 gallons
• Mounting: Floor-mounted
• Kettle action: Stationary, non-tilting
• Jacket: Closed steam jacket covering the lower two-thirds of the kettle
• Heat source: Gas-heated, self-contained steam source
• Ignition: Electronic spark ignition
• Draw-off: Tangent draw-off valve
• Construction: Stainless steel, as identified in the AHS-40 product listing
• Listed input: 115,000 BTU
• Listed height: 43 inches
• Electrical supply: 115 volts, 15 amps, waterproof supply as specified by the manual
• Gas connection: 3/4-inch IPS line or approved equivalent, connected to the kettle gas cock

Installation & Requirements

The manual states that installation requires gas and electrical services and should be performed by personnel qualified to work with electricity and plumbing. Install the kettle on a non-combustible floor. The manual specifies minimum clearances of 2 inches at the sides and 4 inches at the rear from combustible and non-combustible construction, with additional room left for cleaning and service.

Install the unit in a ventilated room with adequate air supply, under a ventilation hood. Keep the combustion-air intake and venting unobstructed, and do not place combustible materials around the appliance. The manual cautions against connecting the unit to a Type B vent and says not to use the kettle without the Groen-supplied flue stack and elbow installed. It specifies a 17-inch-high flue riser attached at the indicated location; the pressure-relief valve outlet must remain free to vent and point down toward the floor.

Connect the kettle gas cock to the gas service main with a 3/4-inch IPS line or approved equivalent. The manual directs installers to clear external gas lines of lint, dirt, metal chips, sealant, grease, oil, and other contaminants before connection. After connection, check all gas-line joints for leaks using a suitable leak detector or thick soap solution; do not use a flame. The manual also gives separate instructions for isolating or disconnecting the appliance during gas-piping pressure tests, depending on the test pressure.

Provide a waterproof 115-volt, 15-amp electrical supply and ground the unit at the provided terminal. For installation in Canada, the manual calls for compliance with the Canadian Electrical Code, CSA C22.2 Part 1, and/or local codes, and with CAN/CGA B149 installation codes for gas-burning appliances and equipment and/or local codes.

Operation

Before starting, check the jacket water level every day; the manual says it should be at the middle of the sight glass. Check the pressure/vacuum gauge as well. The specified reading is 20 to 30 inches of vacuum, shown as a reading 20 to 30 below zero. If either reading is not as specified, consult the manual’s jacket-filling or jacket-vacuum maintenance instructions.

1. Open the main gas supply valve.
2. Turn the toggle switch to ON. The electronic ignition control attempts to light the pilot for 90 seconds, or until ignition succeeds.
3. After the pilot lights, turn the thermostat to the desired setting.
4. If the pilot does not light, turn the unit off and wait five minutes before trying again. If ignition repeatedly fails, contact an authorized Groen Service Agency.

To stop heating, turn the thermostat dial to OFF and switch the toggle switch OFF. The thermostat sets the kettle operating temperature. The power-on indicator shows that the unit is on, the heat indicator shows that main gas is on to produce steam in the jacket, and the low-water indicator signals low jacket water.

The manual cautions operators not to light a burner with a flame. It also says to keep liquids at least 2–3 inches below the kettle body rim to allow room for stirring, boiling, and product transfer. Take care around hot surfaces and hot product, and keep the floor in front of the kettle clean and dry.

Cleaning & Maintenance

Before cleaning, turn the thermostat dial to OFF and the On/Off switch to OFF. Clean food-contact surfaces as soon as possible after use, preferably while the kettle is still warm. If the unit is in continuous use, clean and sanitize the inside and outside at least once every 24 hours.

• Scrape and flush out large food residues. Avoid metal implements that could scratch the kettle.
• Prepare the detergent or cleaning compound according to its supplier’s instructions and clean the unit thoroughly. A cloth moistened with cleaning solution may be used on controls, housing, and electrical conduit.
• Rinse the kettle thoroughly with hot water and drain it completely.
• Disassemble the tangent draw-off valve. Brush the draw-off port and each valve part, then rinse the parts thoroughly with hot water and drain them.
• When reassembling the draw-off valve, hand-tighten the retaining nut.
• As part of daily cleaning, check the inside and outside surfaces that may have become soiled, including the underside of the cover and the control housing.

For jacket checks, the manual directs operators to verify the water level daily and keep it at the middle of the sight glass. It also specifies checking for 20 to 30 inches of vacuum on the pressure/vacuum gauge. For service or replacement work, the manual warns to disconnect electrical power and close the main gas valve before replacing parts, then allow five minutes for unburned gas to vent. Work identified as service-representative-only should be left to a qualified service representative.

The pressure-relief valve must remain free to vent; do not connect piping to it. If a small amount of steam leaks from the valve during operation, the manual suggests that contamination may be preventing it from seating. With full pressure in the jacket, briefly pull the lever all the way to clear the valve, then let it snap back into place. A defective valve should be replaced with an identical valve.

Troubleshooting

The manual separates basic operator checks from work for an authorized service representative. Before replacing parts, disconnect power, close the main gas valve, and allow five minutes for unburned gas to vent.

• Kettle heats beyond or stops short of the selected temperature: The operator can check the thermostat dial setting. Thermostat calibration and operation are service-representative checks. The manual says the thermostat should click as the dial is turned above and below the kettle temperature.

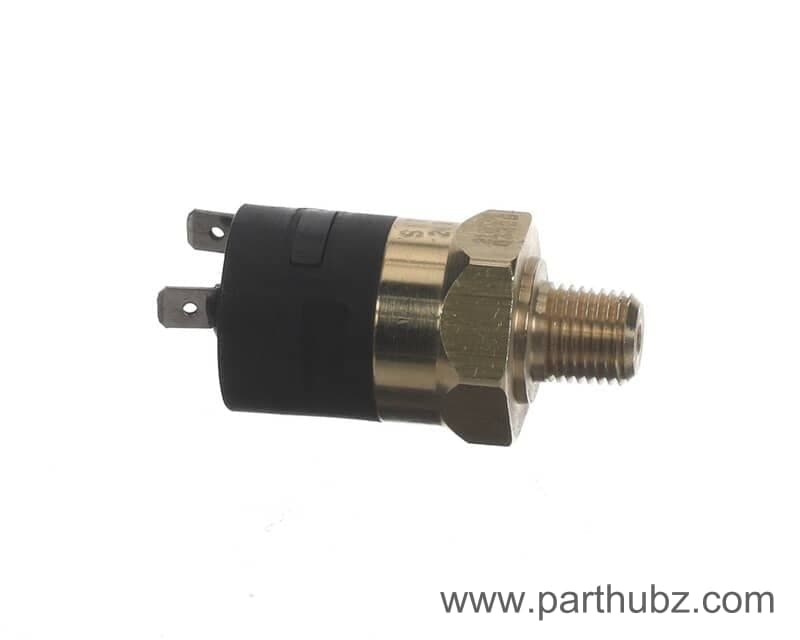

• Pressure-relief valve opens: The operator can check for air in the jacket and review the thermostat setting. A service representative should check the thermostat and valve. The manual says to replace the valve if it opens at pressures below 29 PSI.
• Burners do not light: The operator can check that the main gas supply valve is open and that the building gas supply is available. Thermostat operation is a service-representative check.

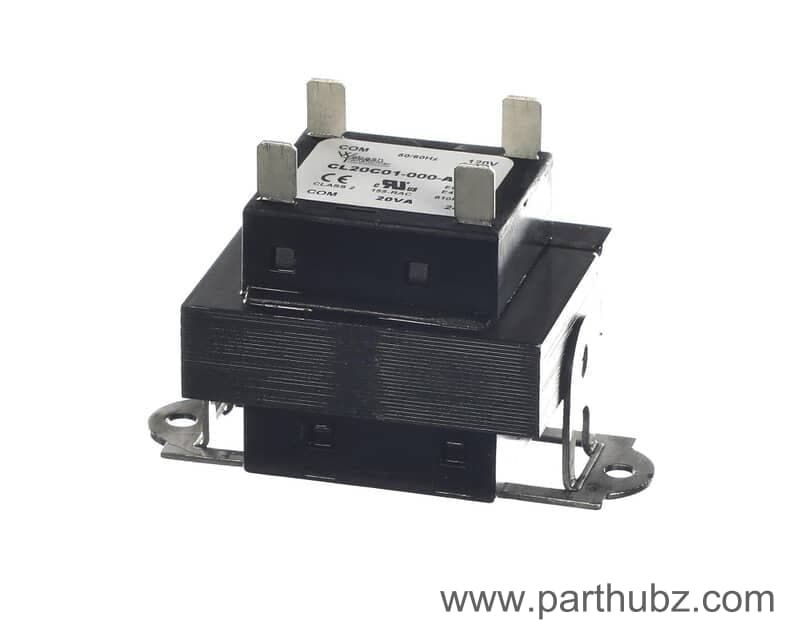

• No spark: A service representative can check for 24 volts at the transformer’s secondary terminals with power on, the high-tension cable and its connections, the pilot burner’s ceramic insulator, and the pilot spark gap.
• Spark is present but the pilot does not light: Service checks include the pilot valve connections, 24 volts at terminals PV and PV/MV, gas pressure of at least 3.5 inches water column, pilot gas flow and line condition, a clear orifice, the pilot spark gap, and drafts around the pilot.
• Pilot lights, but the main burner does not come on and the spark does not stay on: A service representative can check for 24 volts between MV and PV/MV while the pilot is burning, gas pressure of at least 3.5 inches water column, and secure electrical connections to the main valve and its magnetic operator.
• Pilot lights, but the main burner does not come on while the spark stays on: The manual lists checks for burner ground, the pilot burner ceramic insulator, a grounded high-tension cable, gas pressure, the pilot assembly, mechanical and electrical connections, pilot flame strength, and the ignition control module.
• Main burner comes on but will not stay on: A service representative should check the burner ground wire and connections, gas supply pressure, and ignition control module as directed by the manual.
• Pressure-relief valve leaks a small amount of steam during operation: The operator can briefly lift the lever fully with full jacket pressure to clear contamination from the seat. A service representative should replace a defective valve with an identical valve.

Applications

The AHS-40’s 40-gallon capacity and steam-jacket heating make it suitable for commercial kitchens preparing large batches of foods such as soups, stocks, sauces, gravies, and other liquid or semi-liquid menu items. The stationary kettle’s tangent draw-off valve provides a way to drain prepared product without tilting the kettle.
