HR5E

Overview

The Hobart HR5E is an electric commercial rotisserie oven catalogued under model numbers ML-132096 and ML-132097. Hobart, headquartered at 701 S. Ridge Avenue in Troy, Ohio, documents the oven's replacement parts in Form 43117 (August 2015), and the model carries its own entries in Hobart Canada's foodservice price list. PartHubz provides the HR5E parts manual so buyers and technicians can match components to the exact oven on their floor.

The catalog divides the machine into six sections: Controls and Components, Oven Frame and Panels, Oven Doors, Heating and Venting, Rotisserie and Drive Motor, and Accessories. Build date matters when ordering, because several entries apply specifically to HR5E ovens manufactured after 11/2006. The oven also shares hardware across Hobart's rotisserie line — the CPU controller, for example, is catalogued for HR5E/7E rotisserie ovens.

Key Features

Electric Heating, Ordered by Voltage

The HR5E heats with two 2000 W heater assemblies per oven. Hobart catalogs the heaters by voltage — part 00-422905-00009 for 208 V ovens and part 00-422905-00010 for 240 V ovens — so a replacement must match the oven's electrical supply. A 1000 W quartz heater, part 00-360155, is additionally listed as compatible with the HR5E.

CPU Controller

Oven control runs through Hobart's CPU controller, part 00-877881, listed for HR5E/7E rotisserie ovens. Operators running a daily rotisserie program commonly keep a spare controller on the shelf to cut downtime when a unit goes down.

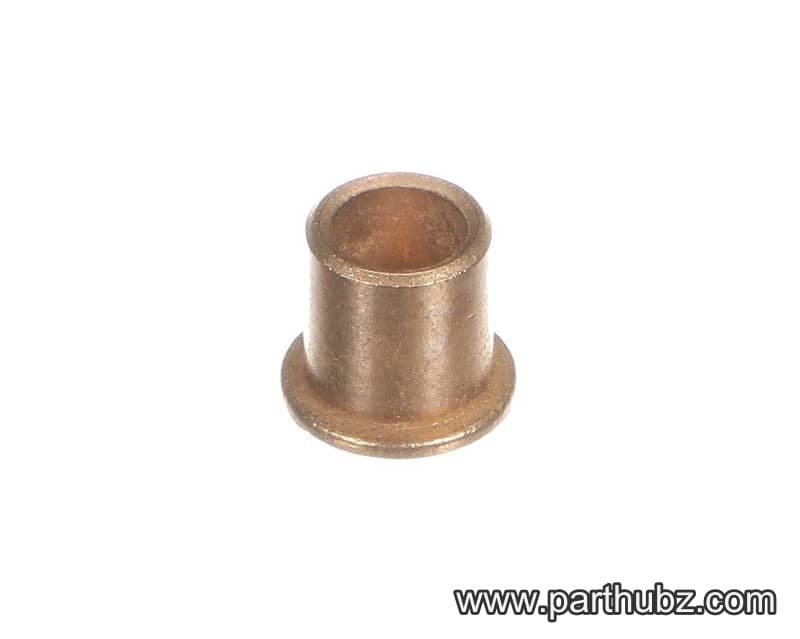

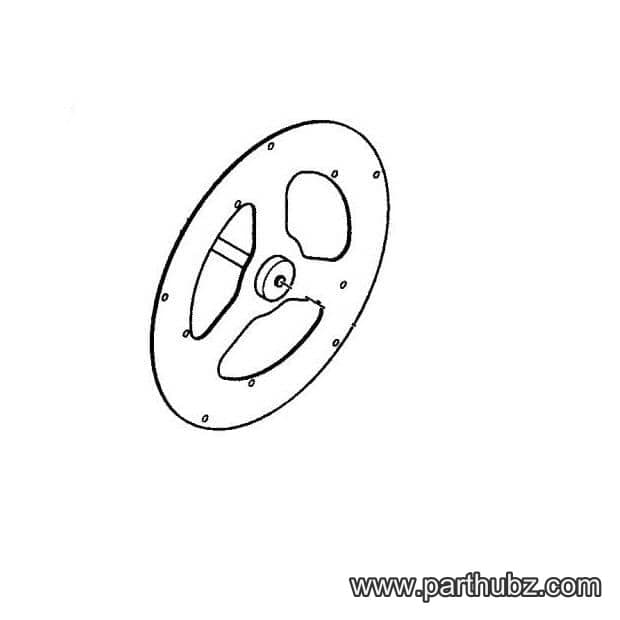

Motorized Rotisserie Drive

The load turns on a pivot-side support plate (00-891116) and a motor-side support plate (00-891115), with the drive carried on a motor bracket assembly (00-877920). Two seals guard the drive: a ring seal (00-877941) and an outside motor shaft seal (00-359460-00049). Hobart's service literature covering the new drive motor for this oven is prepared for trained Hobart service technicians.

Heating and Venting Hardware

Airflow moves through a vent chassis assembly (00-891152) and a ventilating plate assembly (00-891156). The fan sits on a dedicated mounting bracket (00-891153) and runs on a fan blade (00-422905-00008) secured by a left-hand-thread nut (00-422905-00108).

Stacking Accessory

Where floor space is tight, Hobart's stacking kit for the HR5 stand — model STCKKIT-HR5E, listed as item 991062 — is offered as an accessory to the HR5E.

Specifications

• Manufacturer: Hobart, 701 S. Ridge Avenue, Troy, OH 45374-0001
• Product type: electric commercial rotisserie oven
• Catalog model numbers: ML-132096, ML-132097
• Heating: two 2000 W heater assemblies per oven
• Heater voltage options: 208 V (00-422905-00009) or 240 V (00-422905-00010)
• Compatible quartz heater: 1000 W, part 00-360155 (listed weight 0.05 lb)
• Controller: CPU controller 00-877881
• Rotisserie drive hardware: pivot-side support plate 00-891116; motor-side support plate 00-891115; motor bracket assembly 00-877920
• Seals: ring seal 00-877941; outside motor shaft seal 00-359460-00049
• Venting: vent chassis assembly 00-891152; ventilating plate assembly 00-891156; fan mounting bracket 00-891153; fan blade 00-422905-00008; left-hand-thread nut 00-422905-00108
• Fasteners: screw SC-118-22; OEM washer 15 mm × 7 mm, part 00-425900-00187 (listed weight 0.02 lb)
• Accessory: stacking kit STCKKIT-HR5E for the HR5 stand (listed as item 991062)
• Parts documentation: Form 43117 / F-43117 (August 2015)
• Date-specific parts: certain entries apply to HR5E ovens manufactured after 11/2006

Maintenance & Replacement Parts

Form 43117 (August 2015) is the working reference for keeping an HR5E in service. The Heating and Venting section covers the 2000 W heater assemblies in both voltages, the fan blade and its left-hand-thread nut, the fan mounting bracket, and the vent chassis and ventilating plate assemblies. The Rotisserie and Drive Motor section covers both support plates, the motor bracket assembly, and the two seals — the ring seal (00-877941) and the outside motor shaft seal (00-359460-00049) — that close off the drive and the motor shaft.

Fasteners are catalogued parts too: the SC-118-22 screw and the OEM 15 mm × 7 mm washer (00-425900-00187), which the parts listing shows across seven HR5-family applications. Because some entries apply only to HR5E ovens manufactured after 11/2006, match every part to the oven's build date before ordering. Beyond the components highlighted here, the catalog's Controls and Components, Oven Frame and Panels, Oven Doors and Accessories sections cover the remainder of the machine. PartHubz supplies HR5E replacement parts and equipment; the parts manual carries the PartHubz contact line, 833-700-8006, and [email protected] for parts identification.

Applications

The HR5E fits foodservice operations running a rotisserie program: grocery deli hot cases, convenience stores, butcher shops, restaurants and institutional kitchens that roast chickens and other meats on a turning spit for display and sale. Electric heating on a 208 V or 240 V supply lets the oven slot into kitchens wired for either standard, and the motorized drive keeps the load turning through the cook. Operators running more than one unit can pair the ovens with Hobart's HR5 stacking kit to hold the footprint down, and the six-section parts catalog — from door hardware to drive seals — supports the oven through daily roasting service.
