AWC0808-TF

Overview

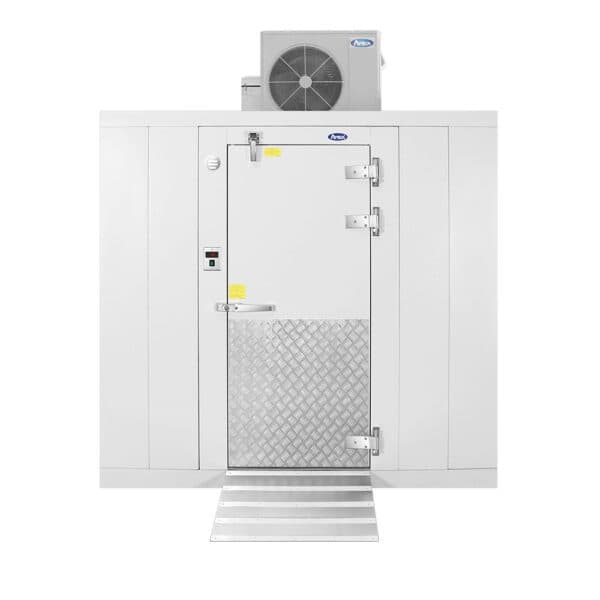

The Atosa AWC0808-TF is an 8' x 8' commercial walk-in cooler for refrigerated food storage in kitchens and food-service operations. Its panel enclosure includes a floor, walls, ceiling and door assembly, with a top-mounted, drop-in refrigeration system. The cooler is specified to maintain temperatures from 35°F to 38°F.

For planning purposes, the listed exterior dimensions are 96" x 96" x 117" with the condensing unit included. The cabinet itself measures 96" x 96" x 91" externally, and its interior measures 88" x 88" x 82" according to the installation manual. The overall height with the refrigeration system is therefore the relevant figure when checking the installation location.

Key Features

• Insulated construction: White interior and exterior with foamed-in-place 4-inch panels and cam locks.
• Top-mounted refrigeration: Drop-in system with a 1.5 HP condensing unit and R404A refrigerant.
• Commercial door hardware: 36-inch door with heated frame, diamond-tread kick plates, three spring-loaded heavy-duty Kason hinges, a heavy-duty closer and a lockable handle with an inside safety release.
• Floor and access: Reinforced floor and standard exterior ramp measuring 34 1/2" x 27 1/2".
• Lighting: Digital LED light and a 48-inch ceiling-mounted LED light are listed as standard features.

Specifications

• Brand: Atosa
• Model: AWC0808-TF
• Product type: Walk-in cooler
• Nominal size: 8' x 8'
• Exterior dimensions: 96" W x 96" D x 117" H, including the condensing unit
• Cabinet exterior dimensions: 96" x 96" x 91", as shown in the installation manual
• Interior dimensions: 88" x 88" x 82"
• Temperature range: 35°F to 38°F
• Voltage: 208–240V / 60Hz / 1 phase
• Rated current: 12 A
• Breaker: 30 A
• Refrigerant: R404A
• Horsepower: 1.5 HP
• Condensing unit weight: 216 lb
• Evaporator weight: 218 lb
• Panel weight: 1,318 lb
• Panels: Foamed-in-place, 4 inches thick, with cam locks
• Door: 36 inches wide, with heated frame and diamond-tread kick plates
• Exterior ramp: 34 1/2" x 27 1/2"
• Standards stated in the product specification: Conforms to UL Std. 471; certified to CSA Std. C22.2 No. 120

Installation & Requirements

The installation manual calls for a firm, level and smooth base. The alignment and plumb installation of the panels affect door self-closing action, gasket sealing and condensation removal. If the existing floor is not level and smooth, the manual says the surface must be prepared to provide an appropriate base.

Allow at least 2 inches of clearance around the outside of the panels for airflow. Check the planned location for door swing and heated pressure-relief clearance before setting the panels. The manual specifies that indoor walk-ins be installed in an environmentally controlled space, with relative humidity kept between 30% and 60% and a dew point of 50°F or less.

Each panel is labelled with a part number. The manual directs installers to refer to the installation drawing in the door-mounted installation pack, group panels by type and follow the drawing when assembling the enclosure. For the refrigeration system, the manual describes placing the evaporating unit on the cabinet ceiling and positioning the condensing unit nearby. The supplied suction line is 5/8 inch and insulated; the 3/8-inch discharge line is uninsulated. The manual identifies these tubes as factory-supplied and says the refrigeration units are charged with R404A at the factory, with no field vacuum or charge required.

The listed electrical supply is 208–240V, 60Hz, single phase. The manual instructs the installer to connect the main power supply wires to the L1 and L2 terminals and the ground connector. It specifically notes that the main power supply wires are not supplied by the factory.

Operation

Atosa recommends setting the refrigerator between 35°F and 38°F for food preservation. The installation and operation manual’s cooler controller parameters list a compressor start temperature of 39°F and a stop temperature of 33°F. These are the manual’s listed controller thresholds; the product specification gives the cooler’s maintained temperature range as 35°F to 38°F.

Applications

The 8' x 8' enclosure provides walk-in refrigerated storage for commercial food-service settings that need room for stored ingredients and supplies. It can support receiving and back-of-house storage workflows in restaurants, institutional kitchens and other food-service operations. Confirm that the overall unit dimensions, including the top-mounted condensing unit, suit the intended location and access route before ordering.
